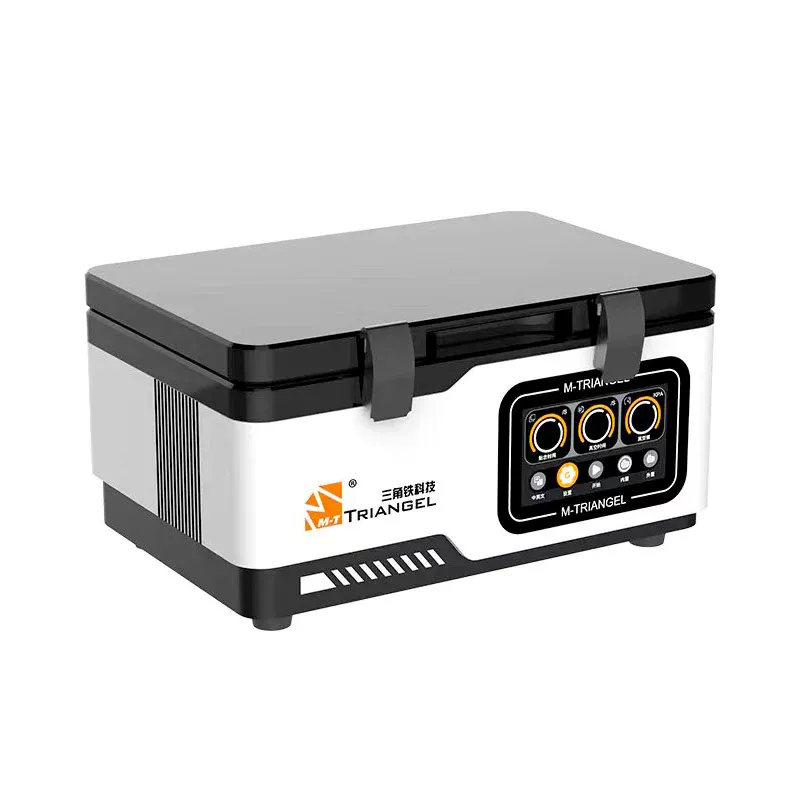

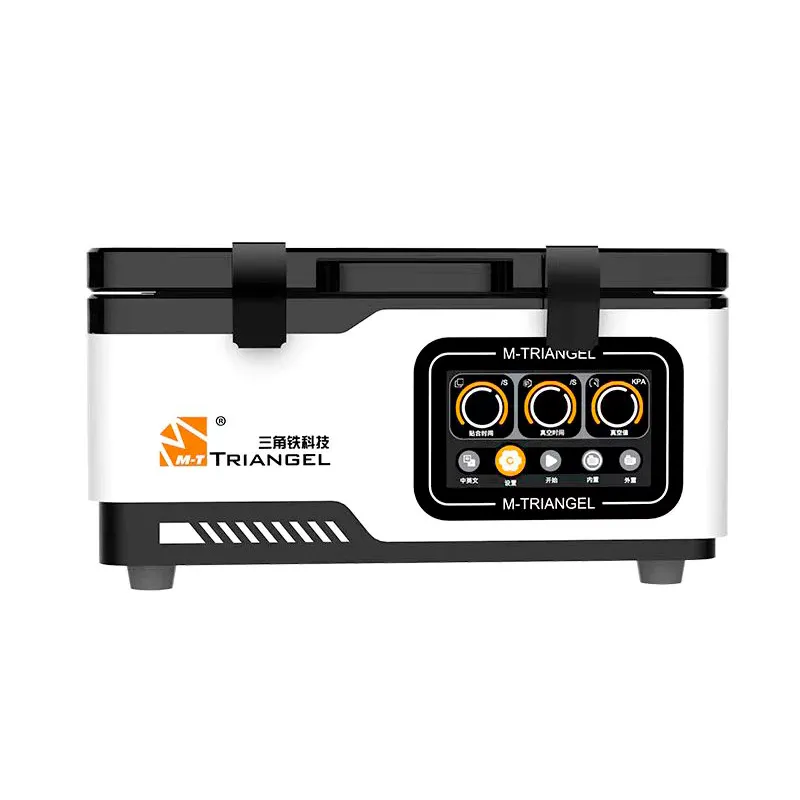

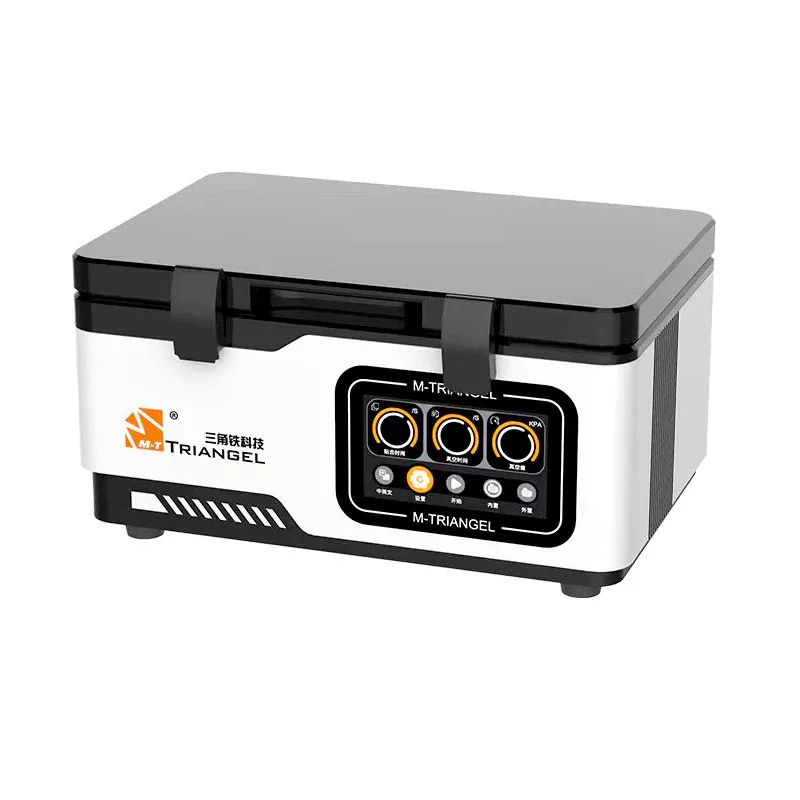

MT 13 OCA Laminating Machine
The M-Triangel MT-13 OCA Laminating Machine is a compact and practical all-in-one lamination device designed for both flat and curved screen lamination. It utilizes a new airbag lamination technology, which allows it to operate with a built-in vacuum pump, eliminating the need for an external air compressor. This machine is capable of laminating screens up to 7 inches.
Benefits of the MT-13 Machine
- Airbag Lamination Technology: The MT-13 employs a new airbag lamination technology, which can be driven by a vacuum pump without requiring an external air compressor. This technology ensures a smooth and bubble-free finish on the laminated screens.
- Versatility: The machine supports most flat and curved screen lamination, making it versatile and suitable for a wide range of mobile devices.
- User-Friendly Design: With a compact design, 3D replaceable airbag platform, and a one-button start function, the MT-13 is user-friendly and practical for technicians of all skill levels.
- Digital Touch Control Panel: Ensures easy operation with a one-button start function.

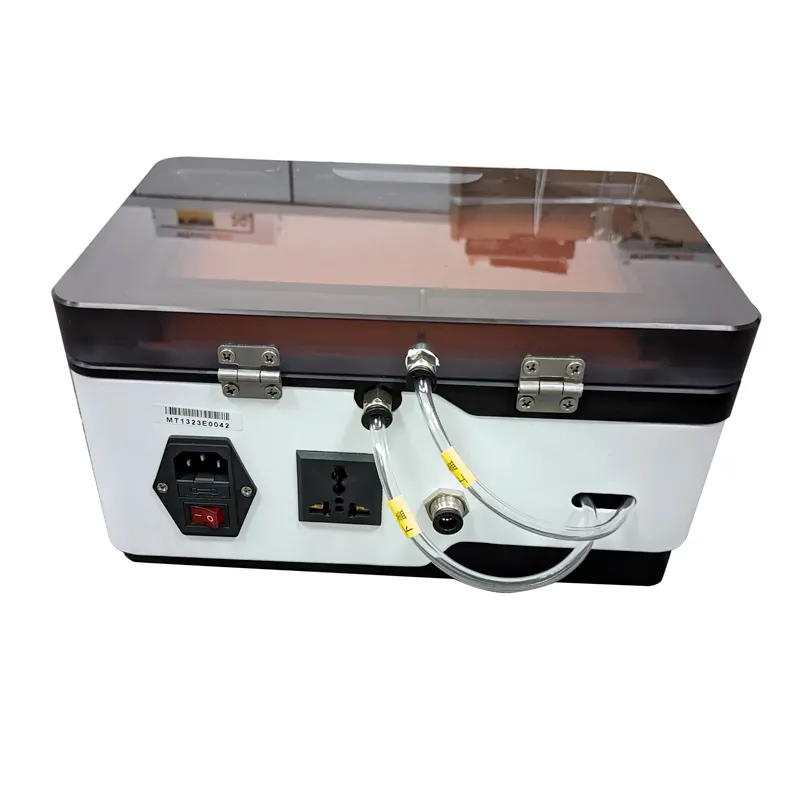

- Built-in Vacuum Pump: The machine comes with a built-in strong vacuum pump and also supports external vacuum pump connections.
- Compact All-in-One Design: The MT-13’s compact design saves space in the work area, and its all-in-one functionality makes it a practical choice for screen lamination.
Specifications of the MT-13
- Power Supply: AC110V/AC220V
- Lamination Size: Up to 7 inches
- Pressing Method: Airbag pressing
- Power: 400W
- Lamination Time: >30 seconds
- Equipment Size: 298*198*157 mm
- Net Weight: 6KG
- The machine’s packing list includes 2 airbag cushions, a black mat, and a windpipe.
- The MT-13 is designed to operate in a clean and dust-free working environment.
- The machine comes with a 1-year warranty.
