CP-103 LCD And Frame Separation Machine


The M-Triangel CP-103 is an LCD and frameSeparation Machine designed for phone screen repair.

MT CP-103 Features:

  • Suction: It has a built-in strong suction pump that provides a large suction power.
  • Platform: The heated platform is made of aluminum, which is anodized and polished.
  • Versatility: It supports both curved and flat screens up to 7 inches. It has been improved for the removal of curved screen middle frames.
  • Rotation: The machine can swing to the left and right up to 120 degrees.
  • Temperature Control: It offers intelligent temperature control with constant temperature heating.

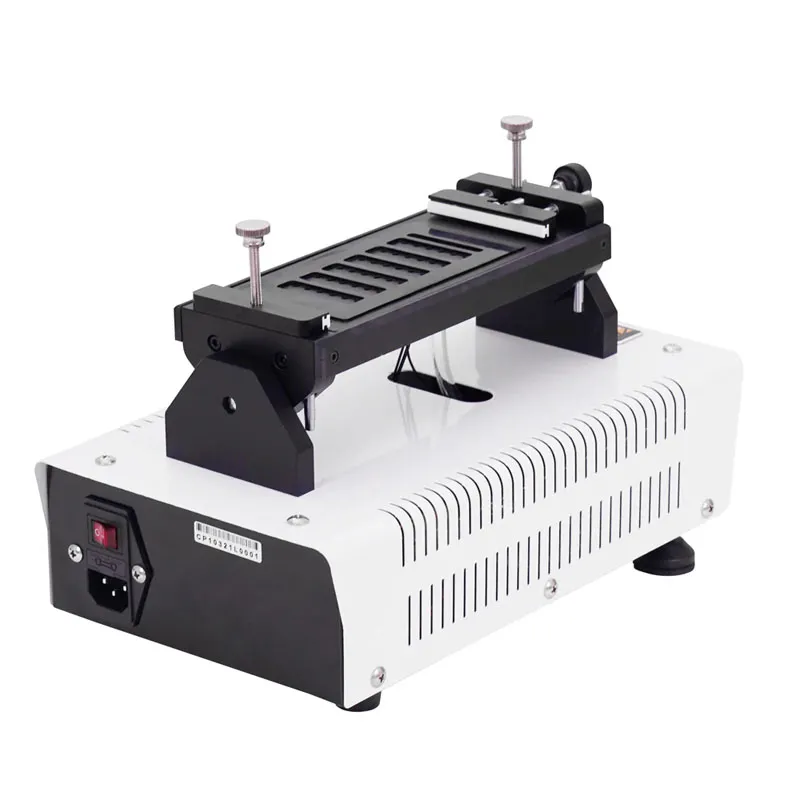

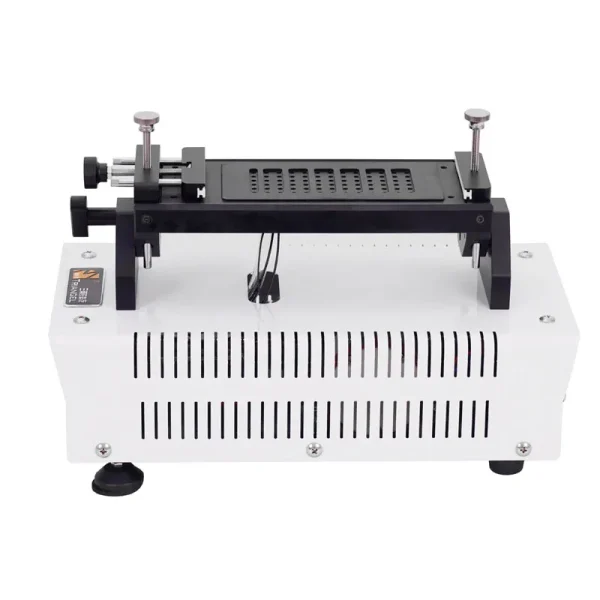

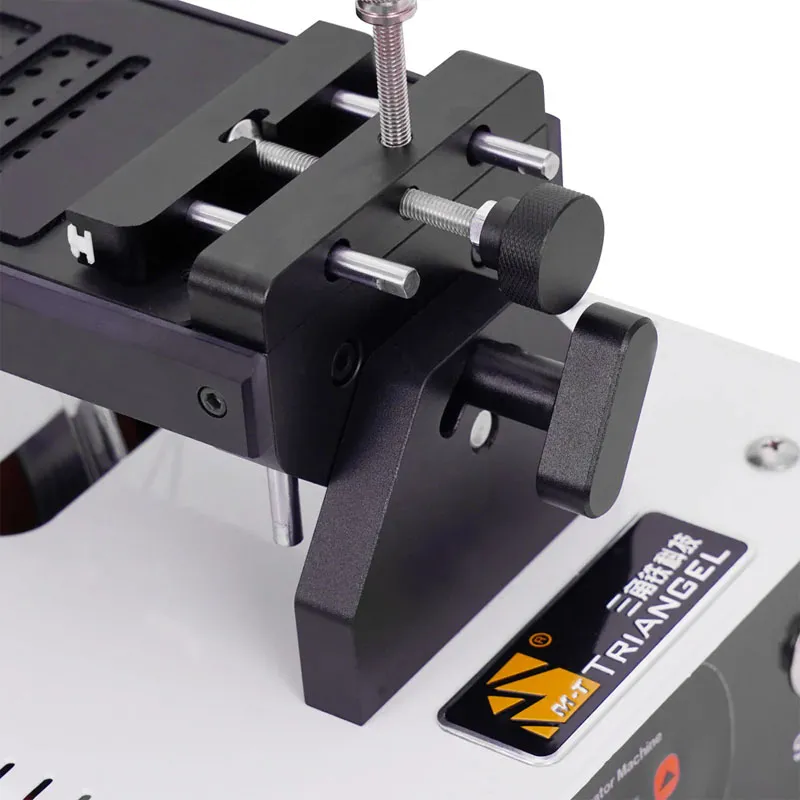

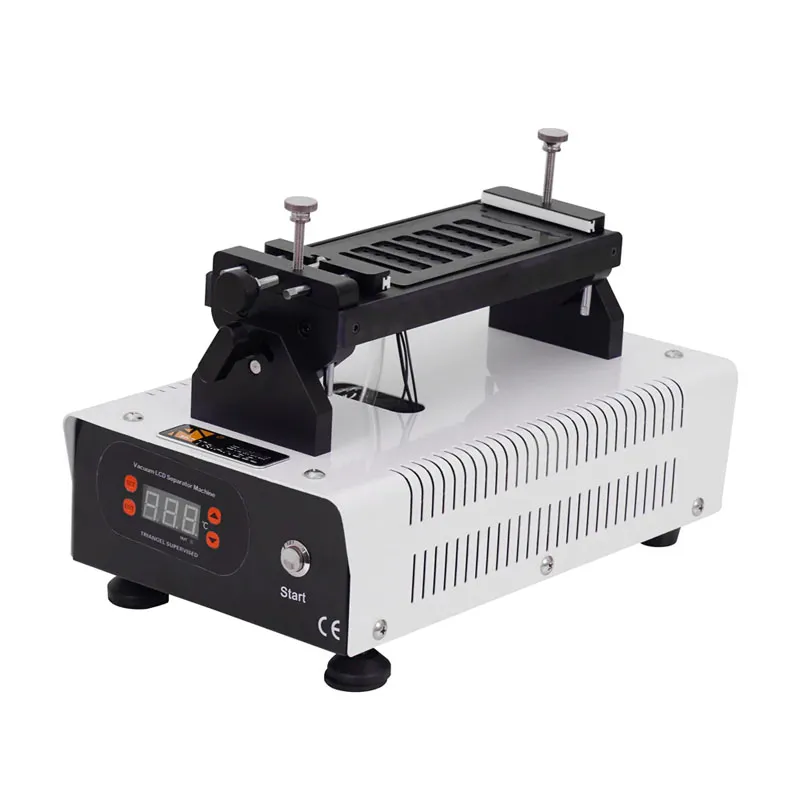

M-Triangel CP-103 Rotatable LCD Separator

The MTriangel CP-103 Separator is designed with a high shelf platform, constructed with materials that undergo surface oxidation polishing. It also has a built-in high suction pump, which offers better performance compared to similar models in the market.

The primary function of the CP-103 is to separate the LCD from the frame of mobile phones. It is especially optimized for separating curved screen frames, but it can also be used for flat LCDs. This makes it a valuable tool for repairing cracked phone screens.

M-Triangel CP-103 Rotatable LCD Separator

Specifications of the CP103

Model CP-103
Voltage AC110V/AC220V
Power 100W
Heating Mode Intelligent temperature control
Heating Temperature 80℃ – 120℃
Application Size ≤7 inches
Equipment Size 320 * 180 * 231 mm
Gross Weight 2.92KG
Using Range For LCD and frame separation, especially curved screens
Specifications of the CP103
